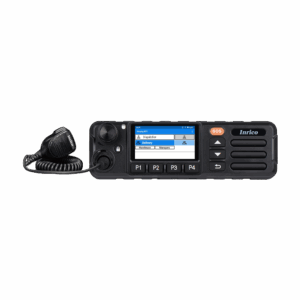

TM7-Plus – Base / Mobile PoC Radio
The Priority PTT TM7-Plus is a mobile push-to-talk radio. It’s suitable for in-vehicle or base station use.
This radio features connectivity over 4G/LTE and Wi-Fi for wide-area radio communications. It includes a loud 5W speaker to ensure clear communications.
The TM7-Plus includes power cables, mounting hardware, LTE and GPS antennas.
The TM7-Plus is our business critical mobile Push-to-Talk over Cellular radio. This radio is perfect for high demand environments like public safety, private EMS, towing, and other fleets. It can be easily converted to a base station with optional accessories.
The TM7-Plus includes connections for an optional external speaker, desktop mic, and foot switch. It features 40V overcurrent protection and will operate on 12, 24, or 36VDC.
Every radio is activated on our multi-carrier cellular platform and comes with unlimited talk & nationwide coverage and range. We will configure as many private channels as you need prior to shipping.
Each TM7-Plus includes:
(1) PoC Radio
(1) Power Cable
(1) LTE Antenna
(1) GPS Antenna

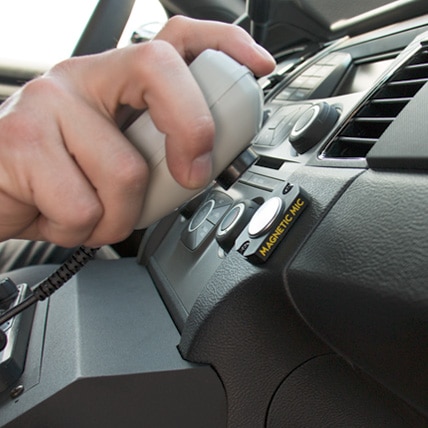

(1) Palm Mic w/ Holder
(1) Radio Mounting Bracket
Contact Us for Pricing & Availability
Contact Us for more details on accessories.
| Software | |
| Operating System | Android 11 |
| Hardware | |
| CPU | MediaTek |
| Memory | RAM: 2GB, ROM: 32GB |
| Display | 2.45″ Touch Screen, 240×432 |
| Audio | Speaker, 5W, 35 x 58mm |
| Microphone | Handheld Palm |
| Card Slot | 2 x SIM (3FF), TF/microSD |
| Camera | External USB Supported |
| Interface | External Power Interface / External GPS Antenna Interface / External GSM Antenna Interface / External Speaker Interface |
| Connectivity | |
| Cellular | GSM: B2/B3/B5 WCDMA: B1/B2/B4/B5 TD-SCDMA: B34/B39 FDD-LTE: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B66 TDD-LTE: B38/B40 |
| WiFi | IEEE 802.11 a/b/g/n/ac/k/v/r, 2.4G & 5G |
| BT | V4.0 & BLE 5.0 |
| GPS | GPS/GLONASS/AGPS |
| NFC | No |
| Power | 12, 24, 36VDC – B+ / IGN / GND |
| Physical | |
| Dimensions | 188 x 58 x 87 mm (7.4″ x 2.3″ x 3.4″) (Including Front Knob) |
| Weight | 450g (1lb) |
| Ratings | IP54 |
| Working Temperature | -20°C – +60°C (-4°F – +140°F) |
| Storage Temperature | -30°C – +70°C (-22°F – +158°F) |
| Certification | CE/FCC/ROHS |
